Product Description

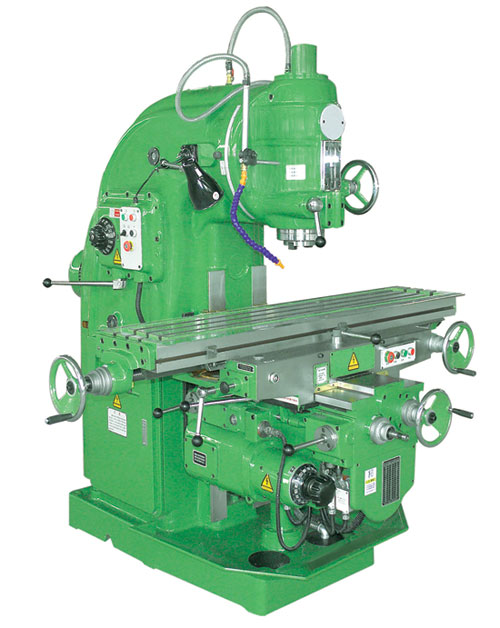

X5032 High quality vertical milling machine manufacturers
1.X,Y,Z automatic feeding
2.hardened guideway
3.headstock swivel angle +/-45 degrees.
Machine Specification
1.X,Y,Z automatic feeding
2.hardened guideway
3.headstock swivel angle +/-45 degrees.
Machine Specification
| Table size | mm | 1320x320 |
| T slot NO./width/distance | no | 3/18/70 |
| Max. load of Table | kg | 500 |
| X table Longitudinal travel(manual/auto) | mm | 700/680 |
| Y table Cross travel (manual/auto) | mm | 255/240 |
| Z table Vertical travel(manual/auto) | mm | 370/350 |
| Spindle taper | ISO50 7:24 | |
| quill travel | mm | 70 |
| spindle speed /step | rpm | 30-1500/18 |
| spindle axis to column surface | mm | 350 |
| spindle nose to table surface | mm | 60-430 |
| Max.swivel of headstock | degree | 45 |
| Longitudinal/cross feed | mm / min | x:23.5-1180/18 y:15-786/18 |
| Vertical/step | mm/min | 8-394/18 |
| Longitudinal/cross rapid speed | mm / min | 2300/1533 |
| Rapid Traverse vertical | mm/min | 770 |
| main motor | kw | 7.5 |
| (X/Y/Z) feed motor | kw | 1.5 |
| coolant motor | kw | 0.125 |
| overall dimension | mm | 2294x1770x1960 |
Tengzhou Sanzhong Machinery Manufacture Co.,ltd. is a highly professional and experienced manufacturer of milling machine, We manufacture and supply a wide range of milling machine to customers across the world. All the milling machines are scientifically designed, with best appearance, exquisite workmanship and advanced functions. Our milling machines are very popular with customers. Replying on regional advantages, we successfully create a batch of good-quality and competitively priced milling machines. We provide excellent milling machine and sincere service, together with fast delivery. Welcome customers at home and abroad to cooperate with us for a brilliant future!
After-sale serviceTechnical support online service provided.
Technical files service provided.
Machine operation videoprovided
On-site training service provided.
Spare parts replacement and repair service provided.
All of the questions will be replied within 24 hours
