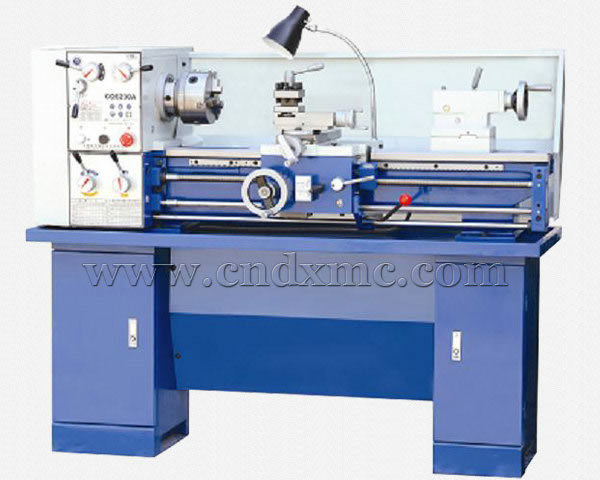

Universal Lathe Machine CQ6230A
Universal Lathe Machine CQ6230A
Technical parameters:
| universal metal working lathe machine | |||
| Model | CQ6230A | CQ6230A-1 | CQ6230A-2 |
| Max.swing over bed | Φ310mm | ||
| Max.swing over cross slide | Φ180mm | ||
| Max. swing over gap | Φ450mm | ||
| Distance between centers | 750mm/910mm | ||
| Width of bed | 181mm | ||
| Spindle bore | Φ38mm | ||
| Taper of spindle bore | M.T.#5 | ||
| Range of spindle speeds | 65-1810(1400)rpm | ||
| Taper of tailstock | M.T.#3 | ||
| Metric threads can be cut | 0.4-7mm | ||
| Inch threads can be cut | 4-60 T.P.I. | ||
| Range of longitudinal feeds | 0.0527-1.2912mm/rev | ||
| Range of cross feeds | 0.011-0.276mm/rev | ||
| Max. travel of cross slide | 130mm | ||
| Max. travel of top slide | 75mm | ||
| Max. travel of tailstock quill | 100mm | ||
| Motor power | 1.1KW.3PH/1.5KW.1PH | ||
Lathe Machine Accessories:
| Standard accessories： | Optional accessories： |
| ·3 Jaw chuck(Φ160mm) | ·4 Jaw chuck(Φ200mm) |
| ·Change Gears Set | ·Face Plate |
| ·M.T.#3 Dead Centers | ·Steady Rest |
| ·M.T.#5/3 Reduction Sleeve | ·Follow Rest |
| ·Oil gun | ·Work Light |
| ·Splash Guard | ·Foot Brake System |
| ·Foot stands | ·Coolant System |
| ·Tool Box&Tools | ·Live Center |
| ·Oil Tray | ·Drill Chuck+Drill Arbor |
| ·Leadscrew Guard | |
| ·Chuck Guard | |
| ·Localizer | |
| ·Clutch For Feed Rod | |
| ·Quick Change Tool Post | |
| ·Digital Readout(2 Axis) |
