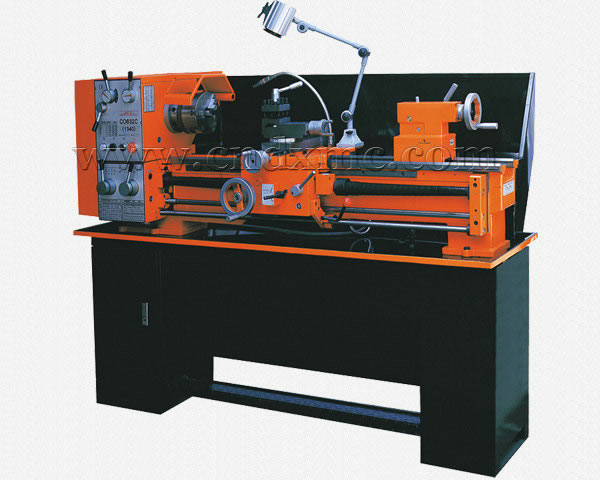

Universal lathe machine C0632C

Technical parameters:

Universal mechanical precision lathe


Max.swing over bedΦ330mm
Max.swing over cross slideΦ180mm
Max. swing over gapΦ470mm
Distance between centers1080mm
Width of bed181mm
Spindle boreΦ38mm
Taper of spindle boreM.T.#5
Range of spindle speeds65-1810rpm
Taper of tailstockM.T.#3
Metric threads can be cut0.4-7mm
Inch threads can be cut4-60 T.P.I.
Range of longitudinal feeds0.0527-1.2912mm/rev
Range of cross feeds0.011-0.276mm/rev
Motor power1.1KW.3PH/1.5KW.1PH
Lathe Machine Accessories:

Standard accessories:Optional accessories:
·3 Jaw chuck(Φ160mm)·4 Jaw chuck(Φ200mm)
·Change Gears Set·Face Plate
·M.T.#3 Dead Centers·Steady Rest
·M.T.#5/3 Reduction Sleeve·Follow Rest
·Oil gun·Work Light
·Splash Guard·Foot Brake System
·Foot stands·Coolant System
·Tool Box&Tools·Live Center
·Oil Tray·Drill Chuck+Drill Arbor
 ·Leadscrew Guard
 ·Chuck Guard
·Clutch For Feed Rod
·Quick Change Tool Post
·Digital Readout(2 Axis)


  • Precision ground and supersonic frequency hardened bed ways.The spindle is supported with precision roller bearing.
  • Headstock gears are made of high quality steel,ground and hardened.Removable gap is provided for larger diameter work.
  • Easy operating gear box has various feeds and thread cutting function.
