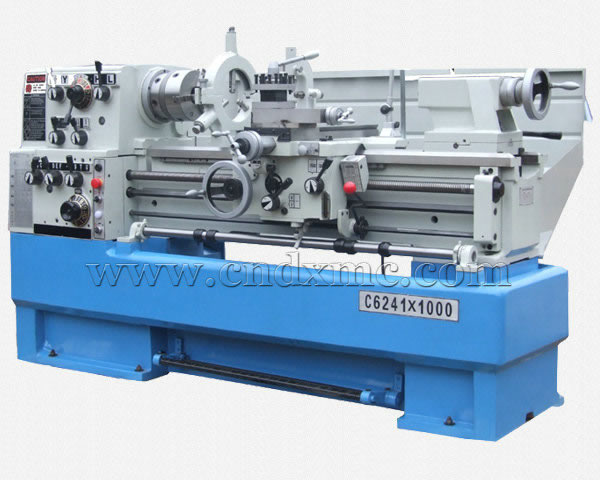

High precision lathe C6241D & C6246D

Technical parameters:

Swing over bedΦ410mm(16")Φ460mm(18")
Swing over cross slideΦ224mm(8 13/16")Φ274mm(10 3/4")
Swing in gap(D×W)640mm×218mm690mm×218mm
Height of center205mm(8 5/64")230mm(9 1/16")
Distance between centers1015mm/1515mm1015mm/1515mm
Width of bed300mm(11 3/4")300mm(11 3/4")
Max. section of cutting tool25mm×25mm(1"×1")25mm×25mm(1"×1")
Total travel of cross slide290mm(11 3/8")290mm(11 3/8")
Total travel of top slide120mm(4 3/4")120mm(4 3/4")
Spindle boreΦ82mm(3 1/4")Φ82mm(3 1/4")
Spindle noseD1-8D1-8
Spindle morse taper in nose,in sleeveME90/M.T.#5ME90/M.T.#5
Spindle speeds number1212
Spindle speeds range25-2000 R.P.M25-2000 R.P.M
Leadscrew diameter thread35mm(1 3/8")×4 T.P.I or pitch 6mm35mm(1 3/8")×4 T.P.I or pitch 6mm
Threads imperial pithches4-112(50 NOS)4-112(50 NOS)
Threads metric pithches0.25-7(24 NOS)0.25-7(24 NOS)
Diametral pitches DP/DP4-112(50 NOS)4-112(50 NOS)
Diametral pitches MP/MP0.25-14(34 NOS)0.25-14(34 NOS)
Longitudinal feeds(imperial/metric)0.0011"-0.0316"(50Nos)/0.01mm-0.286mm(50Nos)0.0011"-0.0316"(50Nos)/0.01mm-0.286mm(50Nos)
Cross feeds(imperial/metric)0.00024"-0.0068"(50Nos)/0.01mm-0.286mm(50Nos)0.00024"-0.0068"(50Nos)/0.01mm-0.286mm(50Nos)
Total travel of tailstock quill120mm(4 3/4")120mm(4 3/4")
Tails stock quillΦ60mm(2 3/8")Φ60mm(2 3/8")
Taper tailstock quillM.T.#4M.T.#4
Lathe Machine Accessories:

Optional equipment & accessories:
·Steady Rest·Leadscrew Guard
·Follow Rest·Clutch for Feed Rod
·Face plate·Taper Turning Attachment
·Drill Chuck M.T.#4·4 Jaw Independent Chuck & Back Plate
·Rolling Centres·The Main Motor Stepless Speed Regulation
·Quick Change Tool post·Digital Readout(3 Axis)
·Digital Readout(2 Axis)·Foot Brake System
·Coolant System·Localizer
·Work Light·Chuck Cover
