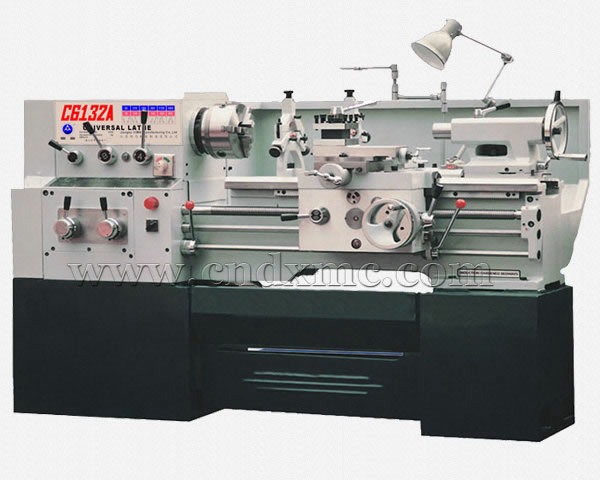

High precision lathe CQ6132A

Technical parameters:

High precision heavy duty industrial lathe
Model	C6132A	C6232A	C6140A	C6240A
Center height	180mm	180mm	202mm	202mm
Max.swing over bed	Φ360mm	Φ360mm	Φ400mm	Φ400mm
Max.swing over carriage	Φ200mm	Φ200mm	Φ245mm	Φ245mm
Max. swing over gap		540mm		585mm
Effective gap length		200mm		200mm
Center distance	750mm/1000mm
Width of bed	330mm
Spindle bore	Φ46mm/52mm
Taper of spindle bore	M.T.#6
Range of spindle speed	25-1600rpm
Cross	240mm
Compound	140mm
Max. travel	130mm
Taper of inside	M.T.#4
The power of main motor	3/4.5kw
Range of metric number	30kinds 0.4-20mm
Inch	35kinds 80-
Diametric pitch	30kinds 160-3 D.P.
Module	25kinds 0.25-10mm
Feed change	138 steps
Long feed per spindle rev	0.04-2.15mm
Cross feed per spindle rev	0.02-1.08mm
N.W/G.W	1300kg/1400kg
Packing size	2290/2575mm×1100mm×1465mm

Lathe Machine Accessories:

Standard accessories：	Optional accessories：
·Lighting equipment	·Driving plate
·Coolant equipment	·4 jaw chuck with adapting flange
·3 jaw chuck with adapting flange	·Face plate
·Reduction sleeve	·Steady rest
·Oil gun	·Follow rest
·Wrenches
·Full length splash guard
