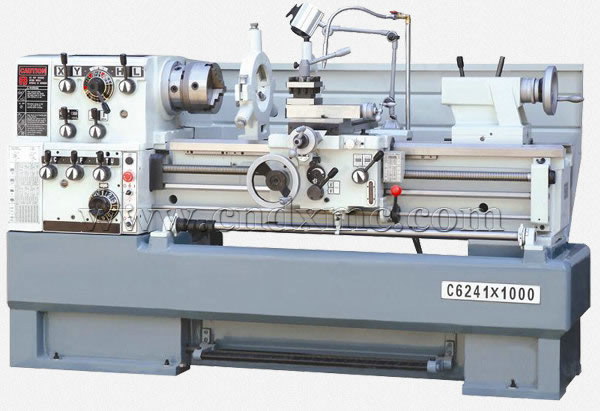

High precision lathe C6241D & C6246D

Technical parameters:

Max.swing over bedΦ410mm(16")Φ460mm(18")
Max.swing over cross slideΦ224mm(8 13/16")Φ274mm(10 3/4")
Max. swing over gapΦ640mm(25 1/8")Φ690mm(27 1/8")
Length of gap155mm(6 1/8")
Max.length of workpiece1000mm(40")/1500mm(60")
Width of bed300mm(11 13/16")
Spindle noseD1-6
Spindle boreΦ58mm(2-1/4")
Taper of spindle boreM.T.#6
Range of spindle speed12changes25-2000r/min
Max.travel of compound rest120mm(4 3/4")
Max.travel of cross slide290mm(11 3/8")
Leadscrew pitchmetric 6mm
Max.section of tool25mm×25mm(1×1")
Range of longitudinal feeds42kinds 0.031-1.7mm/rev (0.0011"-0.0633"/rev)
Range of cross feeds42kinds 0.014-0.784mm/rev (0.00033"-0.01837"/rev)
Metric threads range41kinds 0.1-14mm
Inch threads range60kinds 2-112 T.P.I.
Diametrical pitches range50kinds 4-112D.P.
Module piches rang34kinds 0.1-7 M.P.
Dia. of tailstock sleeve60mm(2 5/16")
Travel of tailstock sleeve120mm(4 3/4")
Morse taper of tailstock sleeveM.T.#4
Power of main motor4kw(5.4HP),optional 5.5kw(7.5HP)3PH
Power of coolant pump40w
Lathe Machine Accessories:

Standard Accessories:Optional Accessories:
·3 Jaw Chuck·Taper Turning Attachment
·Change Gears Set·Live Center
·Chasing Dial Indicator·Work Light
·Reduction Sleeve·Leadscrew Guard
·Dead Centers·Digital Readout
·Full Length Splash Guard·Quick Change Tool Post
·Coolant System·Chuck Guard
·Brake System·Digital Readout(2 Axis)
·4 Jaw Chuck·Drill Chuck+Drill Arbor
·Face Plate
·Steady Rest
·Follow Rest
·Tool Box&Tool


  • Precision ground and supersonic frequency hardened bed ways is designed in double wall structure,giving super rigidity.
  • The spindle system is high in rigidity and accuracy.
  • The design of the main dribe is optimized and the gears in the headstock are precision ground.The noise of the machine is low. ·
  • There is no need for change gears.
  • The machine can turn about 200 kinds of metric,whitworth,module and D.P. threads.
  • An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece,which is safe and eliable apedal braking device providing quick and effective stop while operating.
