CNC Transformation of Vertical Milling Machine (Continued)

Today we come to give a detailed example of how an ordinary vertical milling machine is transformed into a CNC vertical milling machine. Now a lot of customers engaged in the machining industry, found that ordinary vertical milling machine processing speed, efficiency and accuracy is low, but if the procurement of common processing center and CNC machine tools, the cost is too high, take too much money. Many customers reflect this situation to us, hoping to improve the processing efficiency and precision of ordinary milling machines. After my company's technical team of R & D and transformation, our XQ6232WA transformed into a CNC vertical milling machine, greatly improving the processing efficiency and accuracy. Here we compare the transformation of the machine with the original machine after the difference.
Figure 1 Ordinary Vertical Milling Machine

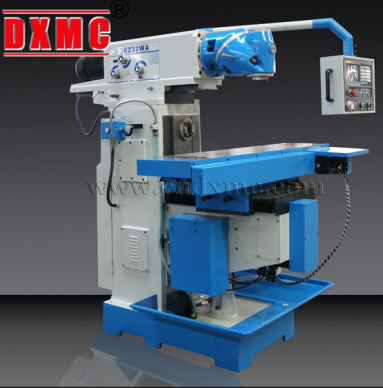

Figure 2 CNC vertical milling machine
Figure 3 Ordinary Vertical Milling Machine (XQ6232WA)
Figure 4 CNC vertical milling machine (XK6232WA)

1. Drive different: figure 3 and 4 show the assembly of the elevator. From the figure we can see that the ordinary vertical milling machine transmission mechanism is carried out by the gear meshing transmission, and CNC vertical milling machine is used servo drive, remove a lot of gear. 2. Screw different: ordinary vertical milling machine is used in ordinary T-type screw, while the CNC vertical milling machine is used in the ball screw. Ball screw with the benefits of servo controller is to control the high precision of the machine, in the processing of the workpiece can also be followed by milling milling, and ordinary screw in the mechanical processing can only reverse milling. 3. System: CNC vertical milling machine is used the CNC system from Guang Tai, and ordinary vertical milling machine only has a digital display. The rest of the transformation of the basic same as above, such as the table and so on. The cost of the machine is much lower than that of the ordinary CNC milling machine, but it is not much worse in performance. It can also be programmed on the machine tool to realize automation and batch processing.
