The development of vertical milling machine

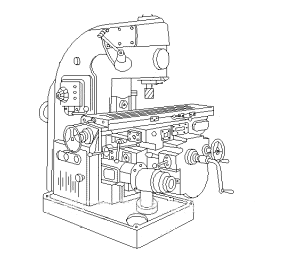

Vertical milling machine is the most representative models: X5032 is the first of the former Soviet Union a machine, its components are: 1 base, 2 bed, 3 milling head, 4 lift, 5 saddle, 6 table composition. The spindle taper is ISO50. The most important feature of this machine is the structure is stable, because the overall structure of the bed is very stable when used, the overall material is more than HT250 gray cast iron. The overall weight of this machine is 2900 kg.1 base: the main carrying the entire machine weight and cooling function. 2 bed with the overall design, stability is very good, the internal structure with gear variable mechanism is the most important part of the machine. 3 The milling part is a variable speed device that passes through a pair of chrysanthemum bevel gears on the bed and then passes to the spindle section and passes through the bed section. 4 lift with the bed is mainly to bring the table up and down movement, and with the feed box drive the entire machine feed. 5 saddle mainly play the role of supporting the table, up and down to connect the lift and the table carrying the workstations of the left and right movement. 6 T-slot on the table to play the role of clamping the workpiece. In the production process to go through processing, scraping research, assembly, testing, testing a few processes. Precision machining to ensure the accuracy of assembly, scraping precision to ensure the accuracy of the entire vertical machine is very important, and now some factories with fine grinding instead of scraping research, this method is fast and convenient but greatly reduced the service life of the machine. So you need to pay more attention when buying machine tools.
