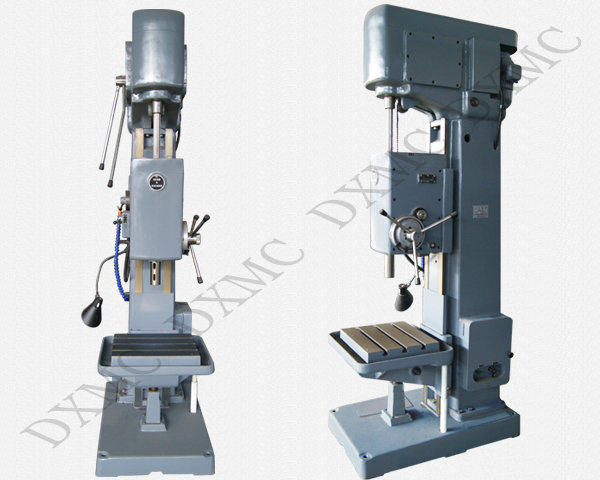

Vertical Drilling Machine Z535
Vertical Drilling Machine Z535
| Specification | Vertical Drilling Machine Z535 |
| Max.drilling diameter | 35 |
| Max.feeding resistance | 16000 |
| Max spindle torque (N.M) | 400 |
| Spindle taper | Morse No.4 |
| Distance from spindle center to guide way(mm) | 300 |
| Spindle travel(mm) | 225 |
| Spindle head travel(mm) | 200 |
| Spindle Speed(r/min) | 68—1100(9 steps) |
| Feed rate(mm/r) | 0.11—1.60(11 steps) |
| Table travel(mm) | 325 |
| Table size(mm) | 450×500 |
| Distance from spindle surface to table | 750 |
| Main motor power(kw) | 4 |
| Flow of cooling pump(L/min) | 25 |
| Dimension size(mm) | 1280×842×2580 |
| Weight(kg) | 1600 |
