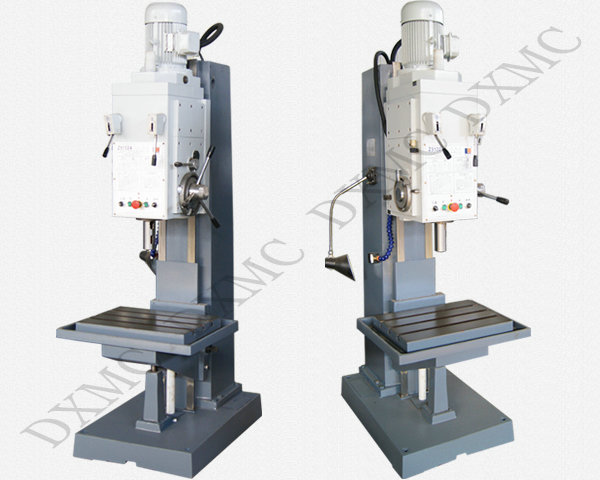

Vertical Drilling Machine Z5132A

SpecificationVertical Drilling Machine Z5132A
Max.drilling diameter32
Max.feeding resistance9000
Max spindle torque (N.M)160
Spindle taperMorse No.4
Distance from spindle center to guide way(mm)280
Spindle travel(mm)200
Spindle head travel(mm)200
Spindle Speed(r/min)50—2000(9 steps)
Feed rate(mm/r)0.056—1.80(9 steps)
Table travel(mm)310
Table size(mm)400×530
Distance from spindle surface to table710
Main motor power(kw)2.2
Flow of cooling pump(L/min)25
Dimension size(mm)962×847×2340
