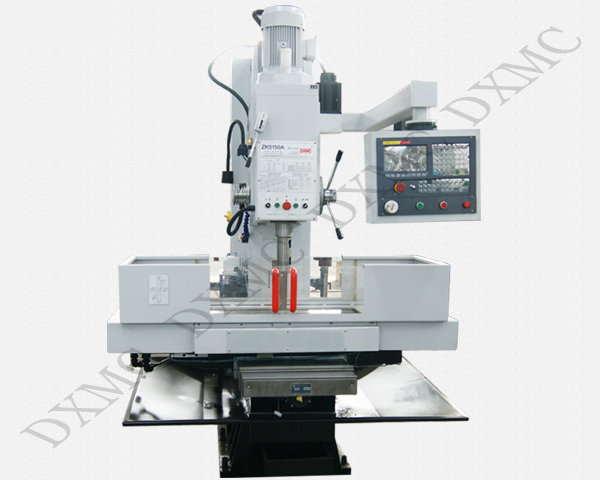

CNC Machine ZK5150A

SpecificationCNC Drilling Machine ZK5150A
Max.drilling diameter(mm)50
Max spindle torqu(Nm)350
Max.feeding resistance(N)16000
Main motor power(KW)4
Spindle taperMorseNo.5
Spindle travel (Z axis)(mm)250
Spindle head travel(mm)350
Distance from spindle center to column guide way(mm)335
Spindle Speed(r/min)45-850 9steps
Table size(mm)740×400
T slot(mm)18×3
Cutting feeding speed(mm/min)600
Table travel (X axis)(mm)700
Table travel (Y axis)(mm)400
Rapid travel X/Y/Z(m/min)2012/12/3
Distance from spindle surface to table(mm)85-675
Positioning accuracy0.025
Repositioning accuracy(mm)0.015
Dimension size(mm)1750×1850×2360
