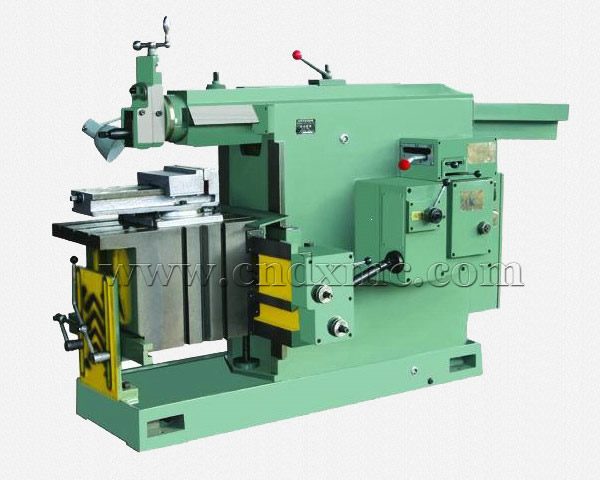

Shaper Machine BC6063

ModelBC6063/BC6066 Shaper Machine
Maximum cutting length(mm)630/660
Maximum distance from ram bottom to table surface(mm)385
Maximum table horizontal travel(mm)630
Maximum table vertical travel(mm)360
Dimensions of table top surface(L×W)(mm)630×400/660×400
Travel of tool head(mm)120
Number of ram strokes per minute14、20、28、40、56、80
Swivel of tool head(°)±60°
Maximum size of tool shank(W×T)(mm)20×30
Range of table power feed(12 steps)(mm) horizontal0.2~2.5
(12 steps)(mm) vertical0.08~1.00
Width of central T-slot of table(mm)18
main motor power3
Overall dimensions(L×W×H)(mm)2342×1225×1480
2357× 1225×1480
N.W/G.W(kg)1750/1870  1800/1920

Product Advantage

  • With good design, main linear cutting motion, it is characterized as reliable performance, mulitfunctions, flexibility. easy operation and maintenance.
  • This BC 6066 Shaper machine is designed for cutting flat and formed surfaces on various kinds of small or medium sized workpiece.
  • With good design, it is characterized as reliable performance, but easy operation and maintenance.
  • Tool head can be swivel ±60 degree and manually feed.
  • The main cutting motion of the machine is linear motion being converted from circular motion of gears by linkblock mechanism. Special suitable for machining plane, groove and dovetail surface. Also, can be used for machining the forming surface.
