Vertical & Horizontal Milling Machine X6332B

Quality machine tools hobby milling machine X6332B

Spindle taperISO40
Spindle travel(mm)150
Distance from spindle to column(mm)200-500(V)
Distance from spindle to table surface(mm)155-455(V) 0-300(H)
Spindle speed range(r.p.m)75-3500 V 12 step 60-1350 H
Table size1250*320
Table travel600*300*300
Main motor(kw) 3.7/2(V)
Table feeding speeds(8 steps) (mm)15-370 (rapid 540/min)
T-slot (number-width-disance) (mm)3/4/70
Overall dimensions(mm)1700×1520×2260
N.W/G.W (kg)1750/1950

Standard accessories

Milling Chuck
Milling Vice
Small Crank

Optional accessories

Rotary Table
Clamp Kit
Diviing Head

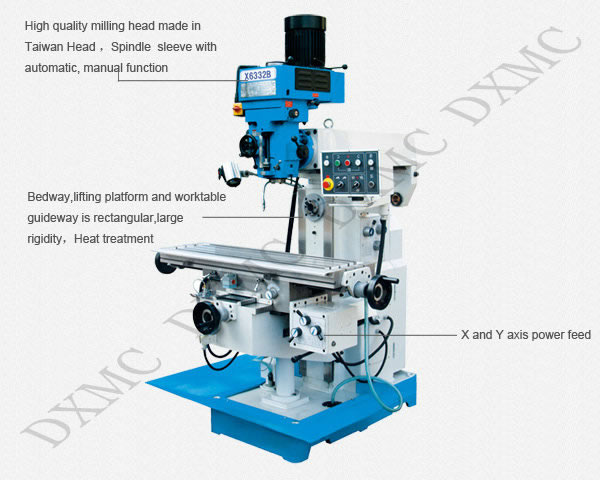

Quality machine tools hobby milling machine X6332B

1.Simple Introduction

X6332B used high-speed milling head, high- powered, high- speed range. The Max is about 5440 r.p.m. automatic feed on two-axis, motorized lift on Z axis.

2.Product Advantage

  • Cast iron after artificial aging treatment, high precision, long service life.
  • Gear power feed,motorized lift on Z axis.
  • The table rotation.
  • Hardening treatment, rectangular guideway.
  • Equipped with manual lubricating device, the lubrication on the lead screw and guideway.
