Vertical & Horizontal Milling Machine X6332B
Vertical & Horizontal Milling Machine DM100
Show all

Vertical & Horizontal Milling Machine X6325W

High quality xyz metal horizontal milling machine X6325W

Table size1270*260
Table travel700*280*450
SpindleTaper(mm)NT30 R8 NT40
Driling dia(mm)15
Quill travel(mm)127
Main parts of sizeDistance from spindle to table surface(mm) 100-490

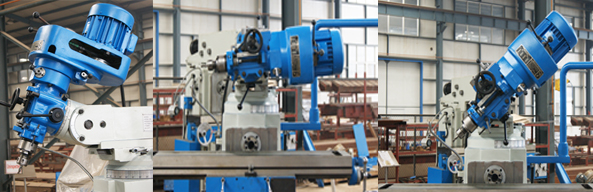

Dirll press head swivelsLeft Right ±90°
Before Behind±45°
Frequency 50HZ

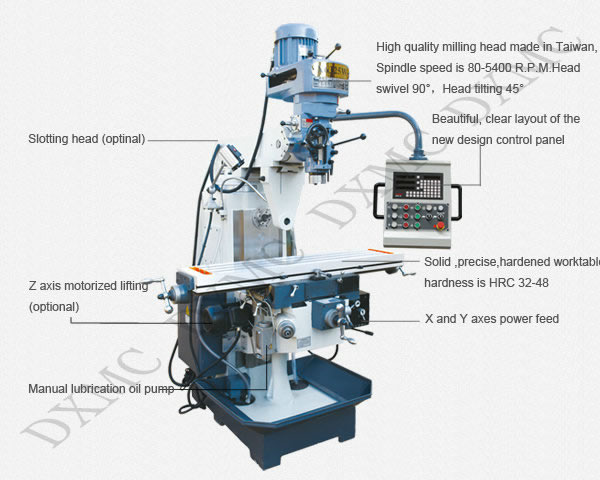

High quality turret milling head, high power and high speed left and right swivel 90 degree, front and back 45 degree
Horizontal milling change speed
Lubrication system
Work table feeding
X and Y axis power feed
CE standard electric system

Standard accessories

Milling Chuck
Milling Vice
Horizontal Spindle Cutter
Small Crank

Optional accessories

Rotary Table
Milling Plug
Clamp Kit
Diviing Head

High quality xyz metal horizontal milling machine X6325W

1.Simple Introduction

X6325W is in the original 3S 4S turret milling based on the installation of a separate horizontal milling system, power feed on two-axis, We can install lift systems on Z axis according to customer needs, you can add slotting head , suitable for spare parts processing and mold manufacturing.

2.Product Advantage

  • Cast iron with high precision, long service life
  • Gear power feed,motorized lift on Z axis
  • Three axis hardening treatment
  • Equipped with manual lubricating device, the lubrication on the lead screw and guideway
