Universal milling machine LM1450C

Large 3 axis benchtop universal vertical milling machine cutting tools lm1450c

Table sizemm1600X320
Numbers、width&distance between T - slotmm3X18X70
Max.longitudinal travelmm800
Max.cross travelmm320
Max.vertical travelmm350-400 The foundation needs
special making
Travel of armmm730
Swivel angle of the vertical milling headdegree±360°
Max.rotary angle of tabledegree±45°
Distance from vertical spindle to column surface (Min)mm270
Distance from horizontal spindle to ram bottommm200
Level spindle tapertaper7:24 NO50
Milling head spindle tapertaper7:24 NO50
level spindle speed gradesteps18
level spindle speed rangerpm30-1500(50HZ)
Milling Head spindle speed gardesteps12
milling head spindle speed rangerpm51-1483(50HZ)
Grade of the work-table feedssteps18
Range of feed speeds longitudinal,cross,verticalmm/min23.5-1180 8-394
Speed of rapid travels longitudinal,cross,verticalmm/min2300 770
Milling head spindle drive motorkw4
level spindle drive motorkw7.5
Feed motorkw1.5
Coolant pumpw125
Net weight /Gross weightkg3500/3700
Overall dimensions(L×W×H)mm2300X2030X2000

Detail

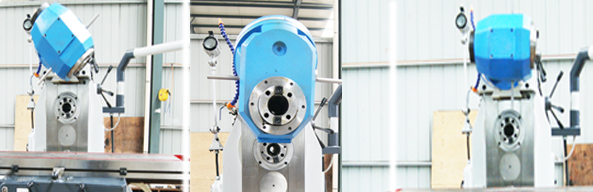

LM1450c vertical and horizontal universal milling machine Milling head swivel 360 degree
Change feeding speed
Table swivel 45 degree
Change horizontal speed
Vertical milling back and forth motion
processing
finishing

Standard accessories

Milling Chuck
Milling Vice
Horizontal Spindle Cutter
Spanner
Small Crank

Optional accessories

Rotary Table
DRO
Clamp Kit
Diviing Head
Plug

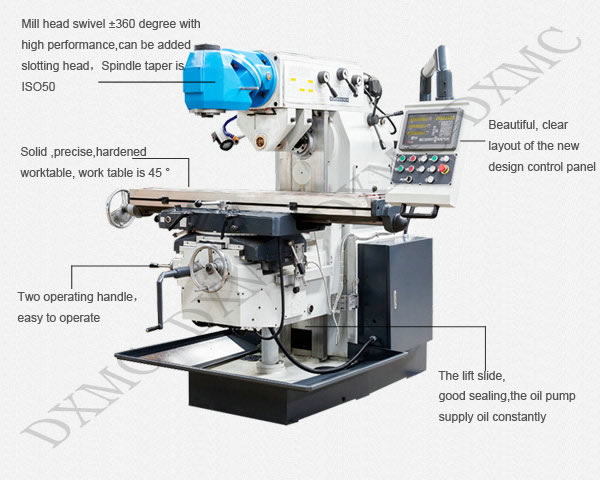

Large 3 axis benchtop universal vertical milling machine cutting tools lm1450c

1.Simple Introduction

LM1450C is a vertical and horizontal universal milling machine.It is suitable for singe and mini-batch production,tool repair departments and mass production departments.The scope of application of the lathe can be enlarged when special accessories such as plug, rotary table and universal dividing head, etc. equipped.

Machine tool has the advantages of universal, high rigidity,broad use and easy to operation, is especially suitable for small batch production and equipment, tool and maintenance workshop. Installing universal dividing head, Rotary table or and other special accessories ,can expanded machine tools process performance, can process vertical or horizontal, straight or spiral shaped of Groove, cylindrical shaped surface, straight gear or spiral gear , if equipped with drill boring accessories and tools, can use for drilling, spread hole ,scraping end surface ,slot and so on.

2.Product Advantage

  • Three axes hardened.
  • Y and Z axis rectangular guideway.
  • Table swivel 45 degree.
  • According to customer requirements can be added ball screw.
  • Centralized transmission,value stable,easy to operate.
