Universal milling machine LM1450C
Universal milling machine LM1450
Show all

Universal milling machine LM1450A

Best Seller 3 Axis Universal Milling Machine LM1450A

Spindle taperISO50
Difference from spindle axis to guideway(mm)505
Horizontal axis middle height0-480
Table size1630*360
Table travel1000*320*405
Main motor 4kw
Feeding motor1.5kw
Spindle speed60-1800
Overall dimensions(mm)2000*2000*2250
N.W/G.W (kg)2650/2850

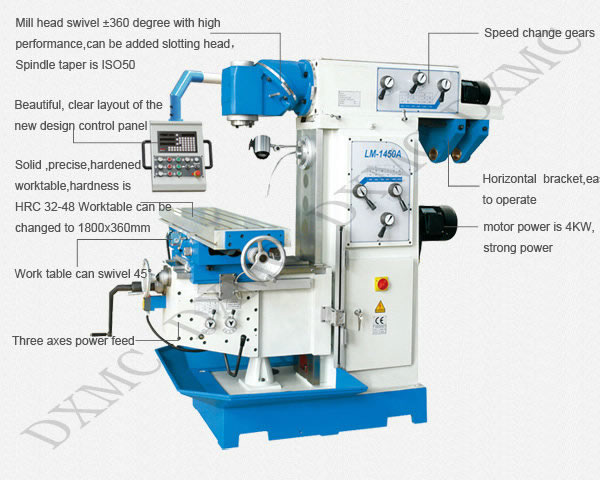

LM1450A vertical and horizontal universal milling machine Milling head swivel 360 degree
CE standard electric part
Working table swivel 45 degree

Standard accessories

Milling Chuck
Milling Vice
Horizontal Spindle Cutter
Small Crank

Optional accessories

Rotary Table
Clamp Kit
Diviing Head

Universal milling machine LM1450A

1.Simple Introduction

LM-1450A universal swivel head milling machine is based on the LM1450, installation of rotary table 45 degrees, processing of a wide range ,three-axes automatic feeds, large torque and strong power,1.5KW, fast-moving 2000mm/min.Spindle taper is ISO 50.

2.Product Advantage

  • High strength milling head, big power
  • The internal gear grinding processing
  • Three axis mechanical feeding, high power
  • The rotary table
  • The rectangular guide , hardening treatment
