Development of Vertical Milling Machine (Continued 3)

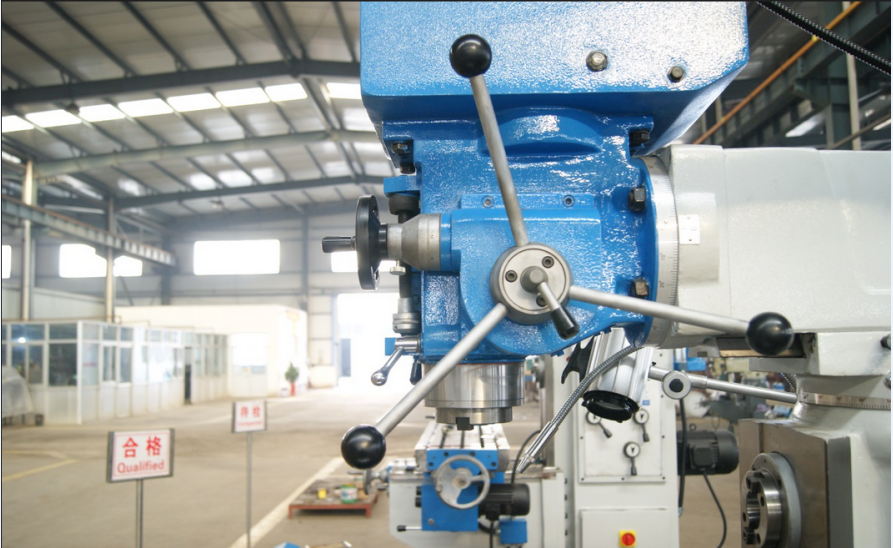

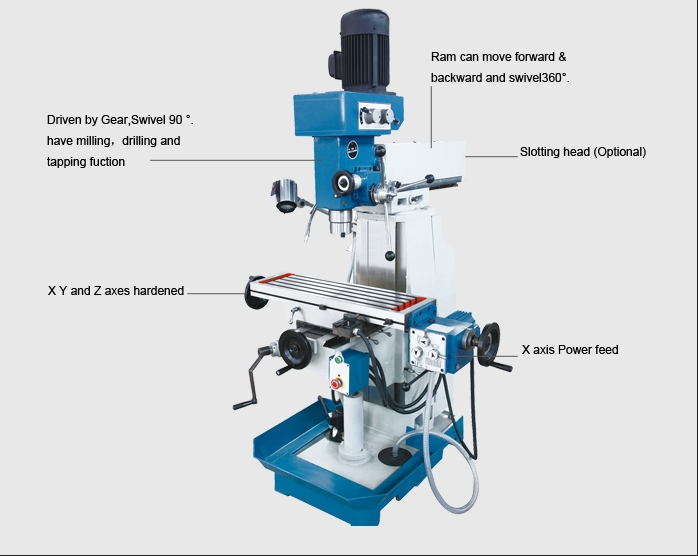

With the development of the market, there have been new vertical milling machine was developed, such as the development of vertical milling machine in 1999 ZX7550C, ZX7550W. These are all developed from simple vertical milling machines. Here I would like to introduce ZX7550 vertical milling machine.Milling part is composed of gear transmission mechanism, there are 8 speed. Drilling the largest diameter (mm): 50 End mill maximum width (mm): 100 Maximum tapping diameter (mm): M16 Spindle end to table distance (mm): 70-420 Spindle speed range: 110-1760 Spindle travel (mm): 120 Worktable size (mm): 800X240 Worktable travel (mm): 400X230 Dimensions (mm): 1290X1140X2100 Motor power (KW): 0.85 / 1.5 Net weight / gross weight N.W / G.W (KG): 610/770 The bed is a dovetail rail, the table is also a dovetail structure. No horizontal milling function, arm can move around before and after. In some places this milling machine is also known as a drilling and milling machine, because it can be drilled. Also known as rocker milling machine: because of its arm can swing. The automatic feed system uses a mechanical feeder for gear transmission. This compact size is very suitable for home use and tool maintenance. Then in 2000 developed the ZX7550W vertical milling machine, it is in the ZX7550C machine to increase the horizontal milling function, but this section is a belt drive.The development of these two milling machines is a major breakthrough in the development of tool milling machines, laying a good foundation for the future development of vertical milling machines. ZX7550C basic accessories: Part Number Part Name Part Specification XJT-NT40-ER40-8 milling chuck 7: 24-40 8 sets ZZJG-NT40-B18-2 spindle connecting rod 7: 24-40 long ZJT-B18 drill chuck 3-16mm B18 GB10687-89-22-24 Forklift wrench 22-24mm GB5356-85-5 Allen wrench 5MM LGLS-M16X480 rod bolts M16X480 YB-127 small shake to 14X14 DJLS-M16X450 anchor bolts M16X450 GB / T6170-2000-16 Hex nuts M16 GB / T97.1-1985-16 Flat pad φ16 Brochure / copiesIn the next article, I will introduce the turret milling machine.
