Turret Milling Machine 3S/3V

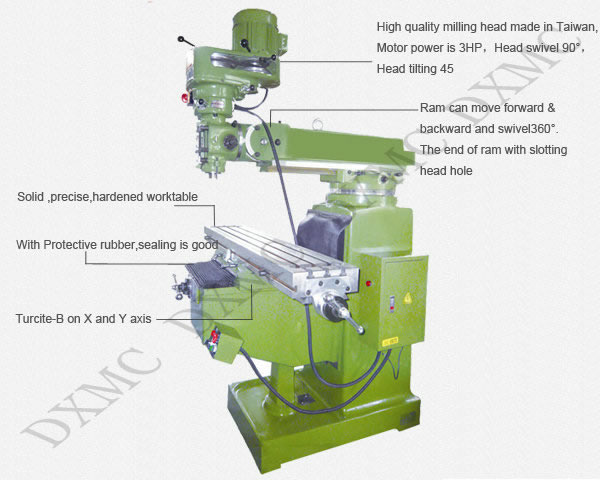

High efficiency mini vertical turret milling machine 3S (X6325) With CE Standard

Specifications3S/3V
Table size(mm)254x1270
Spindle taperNT30 R8
Spindle speed range(r.p.m)80-5440RPM (16 step)
Up and down travel(mm)405
Before behind travel(mm)405
left/right travel(mm)780
Main motor(kw)3HP
N.W(kg)1200

Detail

Three axis automatic feeding
Taiwan Turret Milling Head

Optional accessories

Rotary Table
Digital Power
Milling Plug
DRO
Clamp Kit
Diviing Head

High efficiency mini vertical turret milling machine 3S (X6325) With CE Standard

1.Simple Introduction

2.Product Advantage

  • Senior meehanite cast iron.
  • Easy to operation.
  • Taiwan milling head.
  • Taiwan parts of high precision.
  • Iron plastic processing.
