Radial Machine Z3063 Series
2017-02-28
Radial Machine Z3732
2017-02-28
Show all

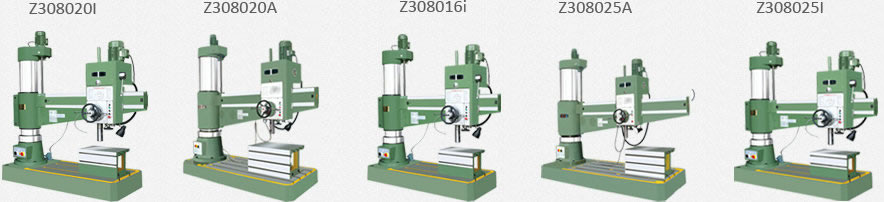

Radial Machine Z3080 Series

specificationZ3063×20AZ3063×25A
max. drilling diameter mm6363
Distance between spindle nose and working surface
of base plate mm
500-1600500-1600
Distance between spindle axis and column mm400-2000500-2500
spindle travel mm400400
spindle taper(morse)55
range of spindle speeds r.p.m20-160020-1600
number of spindle speeds1616
r.p.m rang of spindle feeds0.04-3.20.04-3.2
steps of spindle feeds1616
Radial rotation Angle (°)360360
main motor kw5.55.5
Lifting motor power kw1.51.5
weight kg700010000
overall dimensions mm3000×1250×33003000×1450×3300
The Blue represents a different part
specificationZ3063×16/IZ3063×20/ISZ3063×25/I
max. drilling diameter (mm)636363
Distance between spindle axis and column mm570-1718630-2120630-2620
Spindle box level moving distance (mm)114814901990
Distance between spindle nose and working surface of base plate mm245-1210345-1350345-1350
Radial lifting distance (mm)615655655
Radial lifting speed (m/mm)1.361.361.36
Radial rotation Angle (°)±180°±180°±180°
spindle taper(morse)MT5MT5MT5
range of spindle speeds r.p.m25-110025-110025-1100
number of spindle speeds121212
r.p.m rang of spindle feeds0.06-0.530.06-0.530.06-0.53
steps of spindle feeds8 steps8 steps8 steps
spindle travel mm350350350
spindle peak torque (kw/mm)140140140
Spindle max. feed resistance (N)300003000030000
main motor kw5.55.55.5
weight kg3700650010000
overall dimensions mm2500×1060×28002880×1250×29153380×1250×2915
