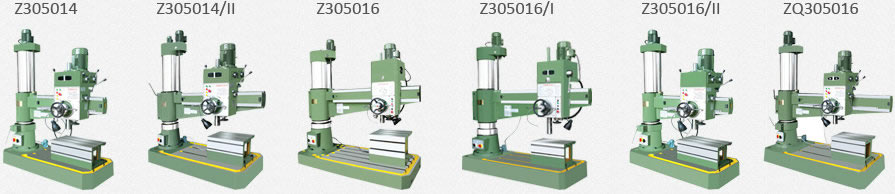

Radial Machine Z3050 Series

specification	Z3050×11	Z3050×14	Z3050×14/Ⅱ	Z3050×16	Z3050×16Ⅰ	Z3050×16Ⅱ	ZQ3050×16
max. drilling diameter mm	50	50	50	50	50	50	50
Distance between spindle axis and column mm	260-1050	260-1150	260-1050	320-1220	250-1150	260-1050	260-1150
Distance between spindle nose and working surface of base plate mm	360-1100	360-1400	360-1400	350-1600	500-1600	360-1600	360-1600
spindle travel mm	220	220	220	300	300	220	220
spindle taper（morse）	5	5	5	5	5	5	5
range of spindle speeds r.p.m	78,135,240, 350,590，1100	78,135,240, 350,590，1100	78,135,240, 350,590，1100	25-2000	29-1400	78,135,240, 350,590，1100	78,135,240, 350,590，1100
number of spindle speeds	6	6	6	16	12	6	6
r.p.m rang of spindle feeds	0.10-0.56	0.10-0.56	0.10-0.56	0.04-3.2	0.10-0.40	0.10-0.56	0.10-0.56
steps of spindle feeds	6	6	3	16	4	3	6
Radial rotation Angle （°）	360	360	360	360	360	360	360
main motor kw	4	4	4	4	4	4	4
Lifting motor power kw	1.5	1.5	1.5	1.5	1.5	1.5	1.5
weight kg	1700	2400	2400	3500	3000	2800	2800
overall dimensions mm	15507052250	1950×810×2450	1950×810×2450	250010602800	2200×900×2550	2170×950×2450	2170×950×2450
