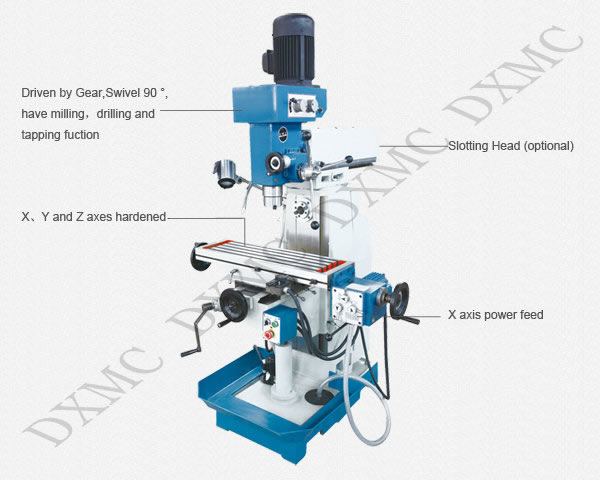

Drilling & Milling Machine ZX7550CW

Gear drive high processing desktop drilling and milling machine ZX7550CW (CE)

SpecificationsZX7550CW
Max. drilling dia (mm)50
Max. end milling width (mm)100
Max. vertical milling dia (mm)25
Max. boring dia (mm)120
Max. tappinig dia (mm)M16
Distance from spindle to table surface (mm)70-420
Spindle speed range( r.p.m)110-1760(V)
58-1355(H)
Spindle travel (mm)120
Table size (mm)800x240
Table travel (mm)400x230
Overalldimensions (mm)1290x1220x2100
Main motor power (kw)0.85/1.5(V) 1.5(H)
N.W/G.W (kg)970/1120

Standard accessories

Milling Chuck
Milling Vice
Horizontal Spindle Cutter
Spanner
Stone Bolt
Big Crank

Optional accessories

Rotary Table
Ditital Power
Milling Plug
DRO
Clamp Kit
Diviing Head
Reducing Sleeve

Gear drive high processing desktop drilling and milling machine ZX7550CW (CE)

1.Simple Introduction

2.Product Advantage

  • Universal milling head, machining flexibility
  • X axis mechanical feed
  • Multifunctional drilling and milling machine
  • Gear transmission milling head
