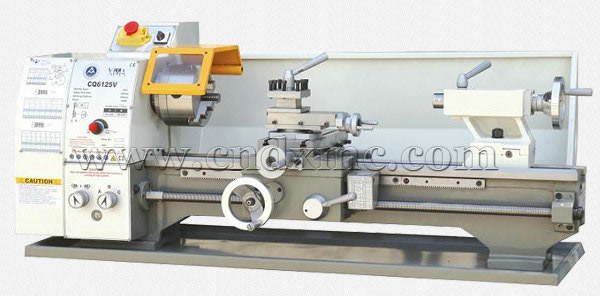

Bench Lathe Machine CQ6125V
Bench Lathe Machine CQ6125V
Technical parameters:
| Precision variable speed bench lathe | CQ6125V | ||
| Model | CQ6125Vx400 | CQ6125Vx550 | CQ6125Vx750 |
| Distance between centers | 400mm | 550mm | 750mm |
| Max. swing over bed | Φ250mm | ||
| Max. swing over cross slide | Φ150mm | ||
| Width of bed | 135mm | ||
| Taper of spindle bore | M.T.#4 | ||
| Spindle bore | Φ26mm | ||
| Range of spindle speeds | 125---2000rpm | ||
| Range of longitudinal feeds | 0.07-0.20mm/rev | ||
| Inch threads can be cut | 8-56 T.P.I | ||
| Metric threads can be cut | 0.4-3.5mm | ||
| Max. travel of top slide | 70mm | ||
| Max. travel of cross slide | 115mm | ||
| Max. travel of tailstock quill | 65mm | ||
| Taper of tailstock quill | M.T.#2 | ||
| Motor power | 750W (DC. motor) | ||
| Packing size | 1045mm×560mm×565mm | 1155mm×560mm×565mm | 1355mm×560mm×565mm |
| N.W | 105kg | 109kg | 119kg |
| G.W | 145kg | 149kg | 159kg |
| Foot stands(L×W×H) | 500mm×300mm×750mm | ||
| Foot stands (N.W) | 44kg | ||
| Foot stands (G.W) | 48kg | ||
Lathe Machine Accessories:
| Stand Accessories： | Optional Accessories： |
| ·3-Jaw Chuck | ·4-Jaw Chuck |
| ·Change Gears Set | ·Face Plate |
| ·Tool Box and Tools | ·Steady Rest |
| ·Dead Centers | ·Follow Rest |
| ·Live Center | |
| ·Turning Tool Set· | |
| Splash Guard | |
| ·Oil Tray | |
| ·Foot Stands | |
| ·Leadscrew Guard | |
| ·Chuck Guard | |
| ·Drill Chuck+Drill Arbor |
