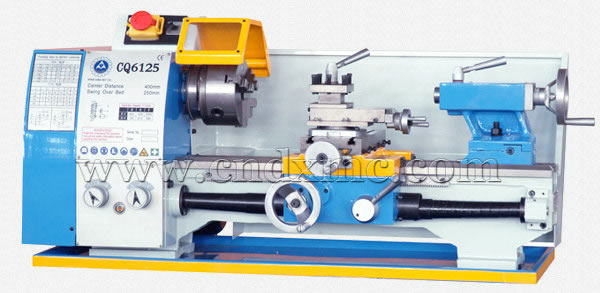

Bench lathe machine CQ6125C

Technical parameters:

Precision powerful bench latheCQ6125C
Swing over bedΦ250mm
Swing over cross slideΦ150mm
Max. length of workpiece400/550/750mm
Width of bed135mm
Spindle boreΦ21mm
Taper of spindle boreM.T.#3
Range of spindle bore125-2000rpm
Taper of tailstock quillM.T.#2
Range of metric threads0.1-2.5mm
Range of imperial threads8-56 T.P.I
Range of longitudinal speeds0.10-0.20 mm/rev
Cross slide travel115mm
Compound rest travel70mm
Max. travel of tailstock quill65mm
Motor power550w
Packing size1045×560×565mm1155×560×565mm1355×560×565mm
Foot stands (L×W×H)500mm×300mm×750mm
Foot stands(N.W)44kg
Foot stands(G.W)48kg
Lathe Machine Accessories:

Stand Accessories:Optional Accessories:
·3-Jaw Chuck·4-Jaw Chuck
·Change Gears Set·Face Plate
·Tool Box and Tools·Steady Rest
·Dead Centers·Follow Rest
 ·Live Center
 ·Turning Tool Set·
 Splash Guard
 ·Oil Tray
 ·Foot Stands
 ·Leadscrew Guard
 ·Chuck Guard
 ·Drill Chuck+Drill Arbor


  • Precision ground and supersonic frequency hardened bed ways.It features with high accuracy and well-resisting.
  • The spindle is supported with precision roller bearing.
  • Safety magnetic switch or lock key switch.
