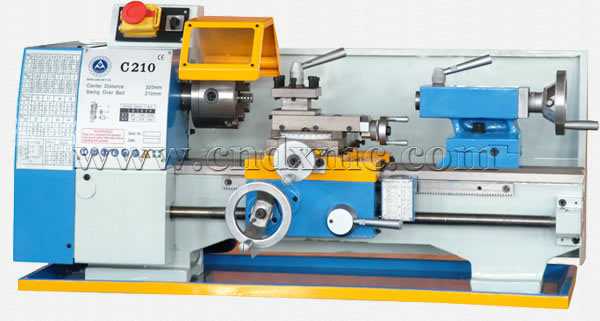

Bench lathe machine C210

Technical parameters:

Quality types of metal benchtop latheC210C


Max. swing over bedф210mm
Max. swing over cross slideф110mm
Distance between centers320mm
Width of bed135mm
Spindle bore20mm
Taper of spindle boreM.T.#3
Range of spindle speeds125-2000rpm125-2000rpm (variable speed)
Taper of tailstock quillM.T.#2
Metric threads can be cut0.4-3mm
Inch threads can be cut10-44TPI
Range of longitudinal feeds0.1-0.2mm/rev
Max. travel of cross slide110mm
Max. travel of top slide70mm
Max. travel of tailstock quill65mm
Motor power550w750w(DC motor )
Foot stands (N.W/G.W)44kg/48kg
Lathe Machine Accessories:

Standard AccessoriesOptional Accessories
·3-Jaw Chunk·4-Jaw Chuck
·Change Gears set·Face Plate
·Tool box and tools·Steady Rest
·Dead Centers·Follow Rest
 ·Live Center
 ·Turning Tool set
 · Splash Guard
 · Oil Tray
 ·Foot Stands
 ·Leadscrew Guard
 ·Chuck Guard
 ·Drill Chuck+Drill Arbor

Product Advantage

  • Precision ground and supersonic frequency hardened bed ways.It features with high accuracy and well wear-resisting.
  • The spindle is supported with precision roller bearing.
  • Safety magnetic switch or lock key switch.
