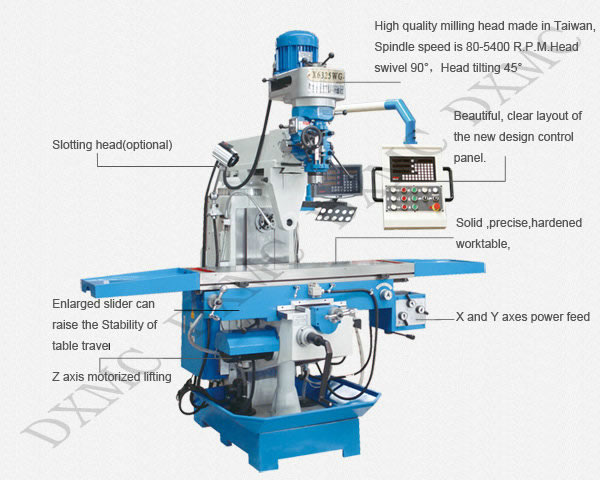

Vertical & Horizontal Milling Machine X6325WG

China Universal Mill Machinery Prices X6325WG With CE

Table size1250*320
Table travel800*300*300
Spindle speedsLow (r/min)80-2720
High (r/min)160-5400
SpindleTaper(mm)ISO 30 R8 ISO 40
Driling dia(mm)15
Quill travel(mm)127
Dirll presshead swivelsLeft Right±90°
Before Behind±45°
Main motor Voltage380V
Frequency 50HZ
Distance from spindle to table surface(mm)100-490
Overall dimensions(mm)1655x1650x2300

Standard accessories

Milling Chuck
Milling Vice
Horizontal Spindle Cutter
Small Crank

Optional accessories

Rotary Table
Milling Plug
Clamp Kit
Diviing Head

China Universal Mill Machinery Prices X6325WG With CE

1.Simple Introduction

2.Product Advantage

  • Cast iron with high precision, long service life
  • Gear power feed,motorized lift on Z axis.
  • Three axis hardening treatment
  • Ball screw
  • Equipped with manual lubricating device, the lubrication on the lead screw and guideway
