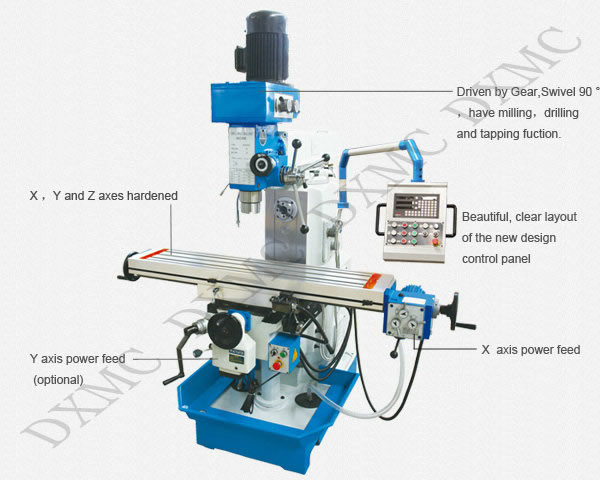

Drilling & Milling Machine ZX6350C
Drilling & Milling Machine ZX6350C
Multi function vertical CE drilling milling machine ZX6350C for sale | |
|---|---|
| Specifications | ZX6350C |
| Distance from spindle nose to table surface(mm) | 90-400 |
| Max drilling dia.(mm) | 50 |
| Max boring dia.(mm) | 120 |
| Max vertical milling dia.(mm) | 25 |
| Max tapping dia.(mm) | M16 |
| Max end milling width.(mm) | 100 |
| Spindle speed range(r.p.m) | 115-1750 V 40-1300 H |
| Table size | 1120*280 |
| Table travel | 600*230 |
| Main motor(kw) | 0.85/1.5(V) 2.2(H) |
| Spindle travel(mm) | 120 |
| overall dimensions(mm) | 1352x1285x2130 |
| N.W/G.W (kg) | 1200/1350 |
Standard accessories
Milling Chuck
Milling Vice
Horizontal Spindle Cutter
Spanner
Drilling Chuck
Stone Bolt
Big Crank
Optional accessories
Rotary Table
Ditital Power
Milling Plug
DRO
Boring Device
Clamp Kit
Diviing Head
Reducing Sleeve
