Universal Milling Machine XQ6232WA
Universal Milling Machine XQ6232WA
High quality universal automatic milling machine XQ6232WA for sale | |
|---|---|
| Specifications | XQ6232WA |
| Spindle taper | ISO40 |
| Max horizontal milling dia.(mm) | 100 |
| Max vertical milling dia.(mm) | Ф28 |
| Table size | 1250*320 |
| Table travel | 600*340 |
| Motor(kw) | 3 (V/H) |
| Distance from spindle nose to table surface(mm) | 100-500 |
| spindle speed range (r.p.m) | 35-1600(V) 40-1300 (12)(h) |
| Package size(mm) | 1520×1630×2200 |
| N.W/G.W (kg) | 1550/1700 |

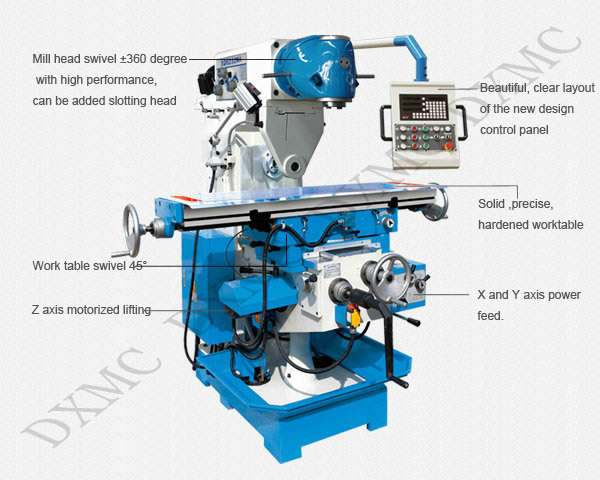

Detail

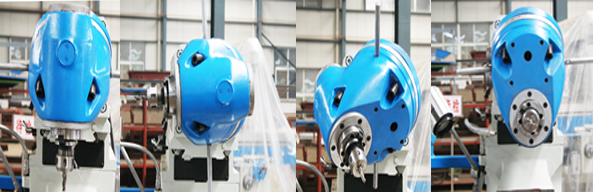

Universal Swivel Milling Head, head can swivel 360 degree
Work table feeding
Table swivel 45 degree
Lubrication system
Z axis motorized lifting
Standard accessories
Milling Chuck
Milling Vice
Horizontal Spindle Cutter
Spanner
Small Crank
Optional accessories
Rotary Table
DRO
Clamp Kit
Diviing Head
Plug
