Vertical Milling Machine

1. The main differences between vertical milling machine and horizontal milling machine are: vertical spindle layout, table can be up and down, more types of milling can be used, the application of a wide range. Vertical milling machine can use the end mill, clip cutter, drill and so on. Milling keyway, milling plane, boring and so on. Horizontal milling machine tools mainly can use three-sided edge cutter, sheet cutter, not as easy and flexible as vertical milling, the main is the use of pylons to enhance tool strength.

2. Vertical milling machines produced by milling machine manufacturers DXMC have the following characteristics:

① cast iron high precision, long service life.

② gear drive, Z-axis electric lift.

③ three axis hardening treatment.

④ with a manual lubrication device, good guide rail lubrication effect.

⑤can achieve vertical milling, horizontal milling two processing functions.

⑥vertical spindle sleeve with manual and automatic two feeding methods.

⑦ X-axis, Y-axis, Z-axis three-way guide rail ultrasonic quenching.

⑧ According to customer needs to install digital devices.

Vertical Milling Machine

Vertical Milling Machine

Vertical Milling Machine

Vertical Milling Machine

Vertical Milling Machine

Vertical Milling Machine

Vertical Milling Machine

Vertical Milling Machine

Vertical Milling Machine

Vertical Milling Machine

Vertical Milling Machine

Vertical Milling Machine

Main technical parameters

Model Table size Table travel Spindle taper
X6336WA 1630x360 1000x300x405 ISO40V ISO50 H

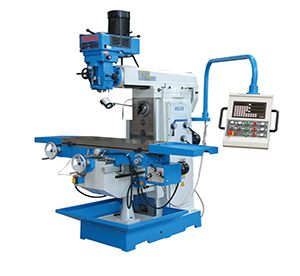

X6336 1250x360 1000x300x400 ISO40(V) ISO50(H)

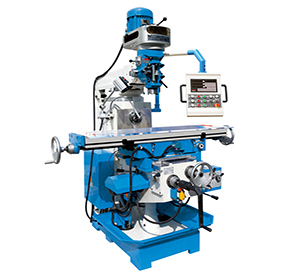

X6332WA 1250x320 600x340 ISO40

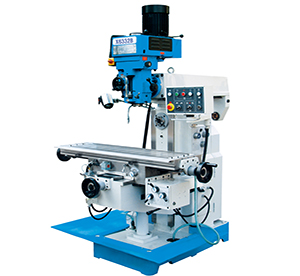

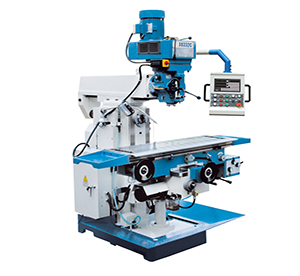

X6332C 1250x320 600x300x300 ISO40
X6332B 1250x320 600x300x300 ISO40

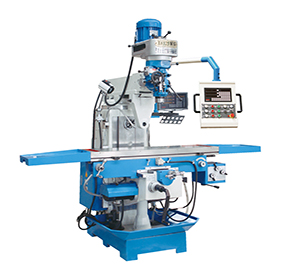

X6325WG 1250x320 800x300x300 ISO 30 R8 ISO 40

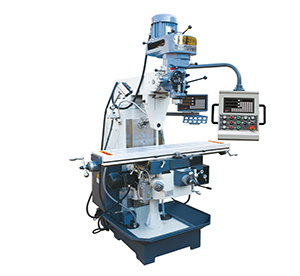

X6325W 1270x260 700x280x450 NT30 R8 NT40
X5032 1320x320 700/680x255/240x370/350 ISO50 7:24
DM100 910x200mm 560x240x350mm R8/ NT40
5S/5V 305x1370 960x450x480 NT40
4S/4V 254x1270 780x405x405 NT30#R8
3S 254x1270 780x405x405 NT30#R8
