Universal Milling Machine

The difference between universal milling machine and multi-function milling machine

Whether it is multi-function milling machine or universal milling machine, its main body should be based on milling machine. The basic characteristics of the milling machine can not be changed regardless of the way of reconstruction and assembly.

The usual way to improve the milling machine is to add accessories to the milling machine to realize other functions, or to realize other functions through modular design. But we see some of the machines on the market is not in the transformation of the milling machine based on, but as with some other machine tools, milling machine only as an auxiliary mechanism exists, this machine should not be called universal milling machine, also should not be called multifunction milling machine, and should be called multi-function machine tool.

Universal Milling Machine

Universal Milling Machine

Universal Milling Machine

Universal Milling Machine

Universal Milling Machine

Universal Milling Machine

Universal Milling Machine

Universal Milling Machine

Universal Milling Machine

Universal Milling Machine

Inaccurate naming methods tend to mislead consumers. In particular, universal milling machine should have the characteristics of: universal milling machine has both vertical milling and horizontal milling functions, and milling head can rotate 360°, known as universal milling head.

We are a professional milling machine manufacturer. With a professional attitude to accurately tell you what is the real universal milling machine equipment. If my statement is wrong, welcome you to correct it. Thank you.

Main technical parameters

Model Table size Table travel Spindle taper
LM1450B 1630X360 1000X320X405 ISO50
XQ6232WA 1250X320 600X340 ISO40

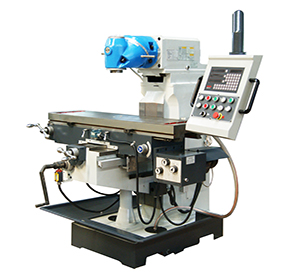

XQ6232A 1250X320 750x300x430 7:24 ISO40

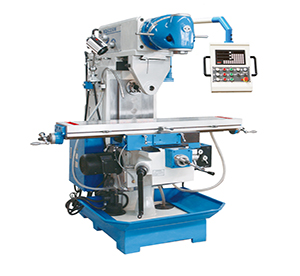

XQ6226W 1270X260 750x300x430 ISO40

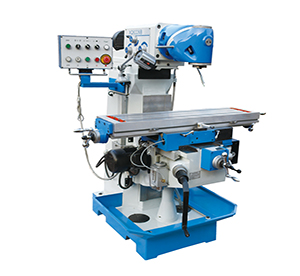

XQ6226B 1120X260 600×270 ISO40

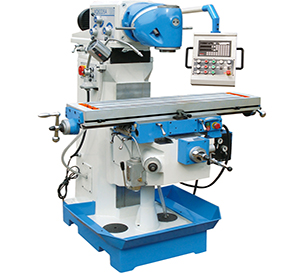

XQ6226A 1120X260mm 600×270mm ISO40
X6132 1320x320 700(680)X255(244)X320(300) ISO50

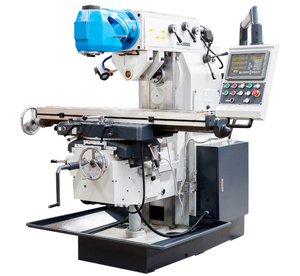

LM1450C 1600X320 800X320X350-400 7:24 NO50
LM1450A 1630X360 1000X320X405 IS050
LM1450 1250x360 970(1000)X300X390 IS040(IS050)
