Modular Design

Modular Design

Modular design concept is: to adjust the machine tool ( milling machine) one part to achieve another function of milling machine. So the machine can be changed quickly and flexibly to meet the different requirements of different customers . This will not only meet the needs of different customers also realize the diversification of milling machine, At the same time also save time and cost for the customer Our company took three years to continuously improve the milling machine seriation, professional. customer-oriented,customer demand is the direction of our efforts.

Modular design details are as follows:

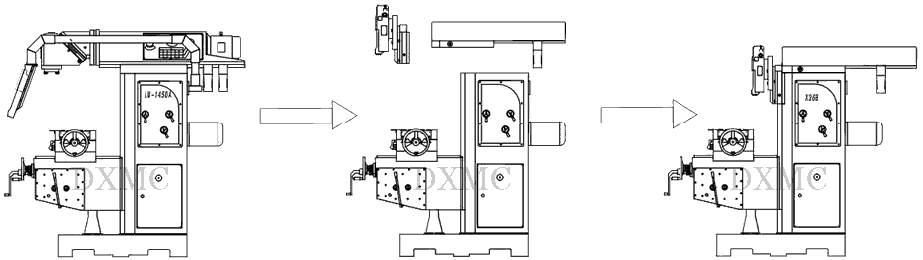

LM1450A-36B

The 1450A universal milling machine ‘s ram , milling head, connecting base removed and replaced by X36B knee type milling machine’s ram. plus a dedicated milling and slotting dual functional milling head,it will be become X36B knee type milling machine.

Modular Design

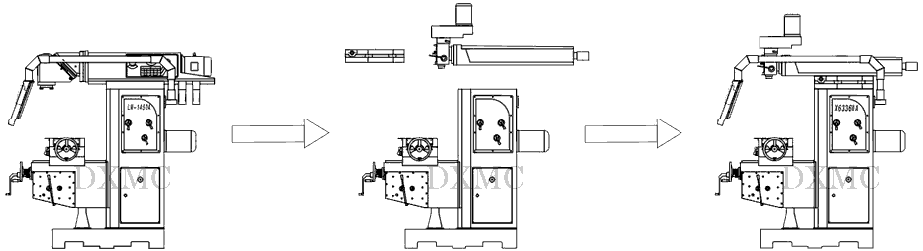

LM1450A-X6336WA

LM1450A is a vertical and horizontal universal milling machine , you can remove the ram , milling head , connecting base , put a particular ram , the Taiwan high speed milling head, connecting base, the it will be become a vertical and horizontal turret milling ,suitable for molds, precision parts processing , with drilling, milling , spindle feed and other multiphase function.

Modular Design

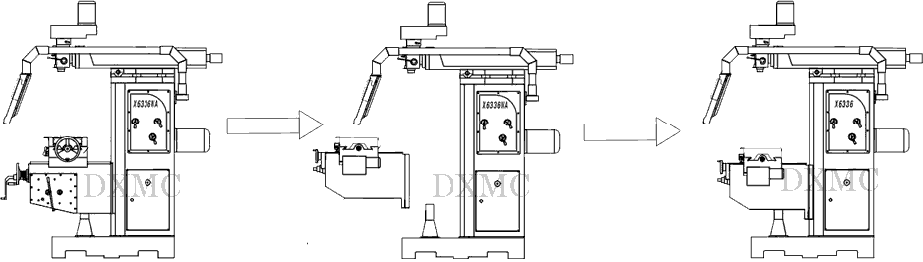

X6336WA-X6336

X6336WA is a high-speed vertical and horizontal turret milling machine has , with vertical and horizontal , table swivel , three-axis automatic feeding , high-power feeding device, , you can change the lifting platform, Slide block, worktable to X6336 ’s ifting platform, Slide block, worktable, it will be become X6336 Turret milling machine .X6336 is lengthened the slider,the table can’t be swiveled, X and Y axis power feeding and Z axis motorized lifting.

Modular Design

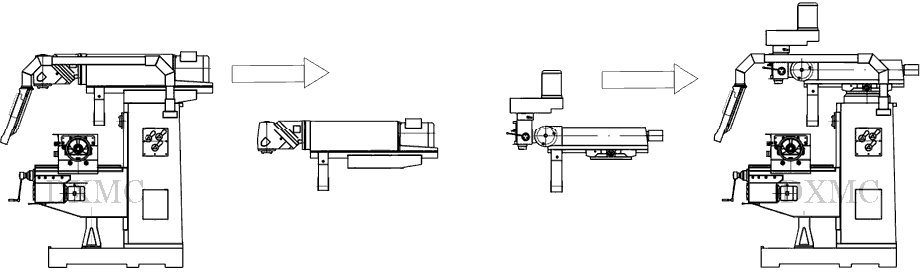

XQ6232WA-X6332WA

XQ6232WA is a vertical and horizontal universal milling machine , spindle taper is ISO40 table swivel , X and Y axis automatic feeding Z axis motorized lifting. changed XQ6232WA’s milling head , ram, and connecting base to X6332WA’s ram , Taiwan milling head then it will be become a vertical and horizontal turret milling machine . With drilling, milling, drilling , tapping function.

Modular Design

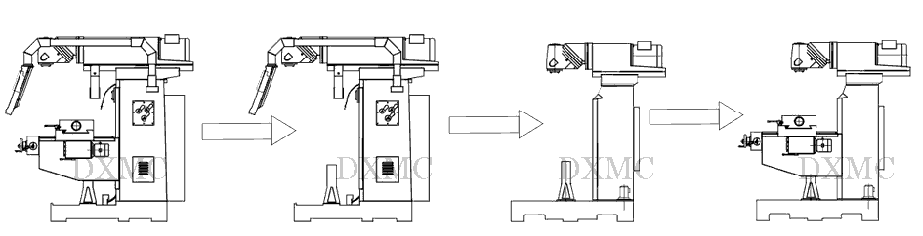

XQ6232WA-XQ6226W

Changed XQ6232WA‘s lifting platform,slide block,worktable. Both of them are vertical and horizontal universal milling machines. Functional differences : XQ6232WA with table swivel and table size is 1250X320mm, XQ6226W: table can’t be swivel , Z axis motorized lifting is optional accessories, table size 1270X260mm.
