Drilling Milling Machine

1. Drilling and milling machine is a set of drilling, milling, boring, grinding in one of the machine tools, applied to small and medium-sized parts processing.

2. The worktable of drill milling machine can move horizontally and vertically, and the spindle is vertically arranged. The milling machine usually has a lifting table, and the milling head can be lifted up and down. The spindle can be rotated about 90 degrees in the vertical plane, and some types of worktable can rotate 45 degrees in the horizontal plane. Most types of worktable can be fed automatically.

3. DXMC milling machine manufacturer provides you with common types of milling cutters:

① Cylindrical milling cutter: mainly used in horizontal milling machine machining plane. The cutter tooth is distributed on the circumference of the milling cutter, and is divided into two types: straight teeth and spiral teeth. According to the number of teeth, it is divided into coarse teeth and fine teeth two kinds. The coarse tooth milling cutter has the advantages of less teeth, high cutter tooth strength and large chip space, so it is suitable for rough machining. The fine tooth milling cutter is suitable for finish machining.

② Face cutter: also known as disc cutter, mainly for vertical milling machine milling plane.

③ End mill cutter: suitable for processing grooves and steps and so on.

④ Three-sided edge cutter: for processing a variety of grooves and steps, the two sides and the circumference both have a knife tooth.

⑤ Angle milling cutter: used for milling groove with a certain angle. There are two kinds of single angle and double angle milling cutters.

⑥ Saw blade milling cutter: used for processing deep groove and cut off the workpiece, and have more cutter tooth on the circumference.

In addition, there are keyway milling cutter, dovetail groove milling cutter, T-groove milling cutter and other kinds of formed milling cutters, etc..

Drilling Milling Machine

Drilling Milling Machine

Drilling Milling Machine

Drilling Milling Machine

Drilling Milling Machine

Main technical parameters

Model Table size Table travel Spindle taper

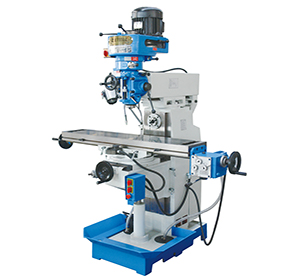

ZX7550Z 800x240 400x230 NT30 R8 (NT40)

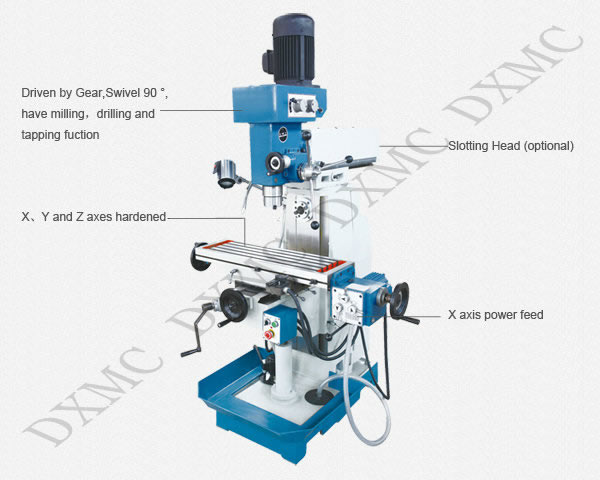

ZX7550CW 800x240 400x230 ISO40

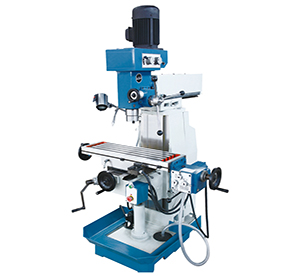

ZX7550C 800x240 400x230 ISO40

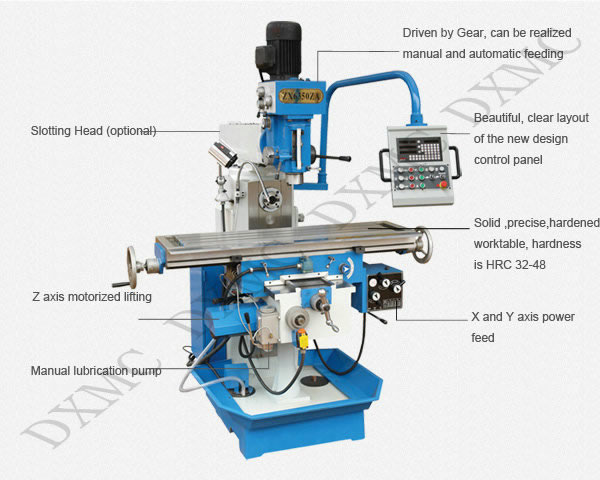

ZX6350ZA 1250*320 600*300 IS040

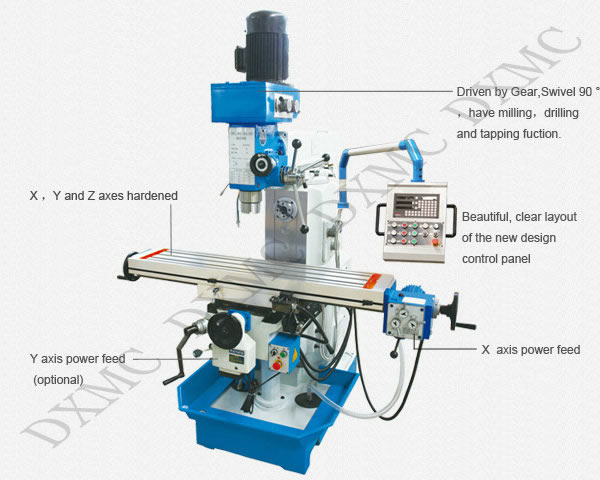

ZX6350C 1120x280 600x230 ISO40
